Interactive circle drawing

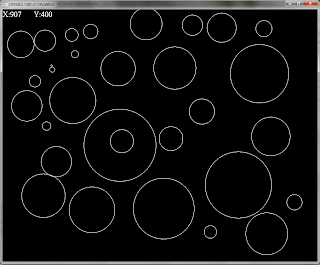

Below program will let you draw the circle wherever you want and of whatever radius you want it to be.

// This program is for line drawing using opengl
// User cn draw the lines by clicking the points in the opengl window
// User can remove the lines by pressing the right mouse button

#include "stdafx.h"

#include <string.h>
#include <GL/glut.h>
#include "math.h"

float rotate =0.0;
float start = 0.0;
float z_dep = 0.0;

int poi_size = 0;
int poi_arr[100][2];
float rad_arr[50];
int m_x = 0;
int m_y = 0;

int rubber_band_on = 0;

int down_flag = 0;
void *font = GLUT_BITMAP_TIMES_ROMAN_24;
void *fonts[] =
{
  GLUT_BITMAP_9_BY_15,
  GLUT_BITMAP_TIMES_ROMAN_10,
  GLUT_BITMAP_TIMES_ROMAN_24
};

void selectFont(int newfont)
{
  font = fonts[newfont];
  glutPostRedisplay();
}

void drawCircle(float radius, float x1, float y1)
{
    float angle = 0;
    float x2,y2,cx,cy,fx,fy;
    int cache = 0;
    glBegin(GL_LINES);
    for (angle = 0; angle < 360; angle+=1.0) {
        float rad_angle = angle * 3.14 / 180;
        x2 = x1+radius * sin((double)rad_angle);
        y2 = y1+radius * cos((double)rad_angle);
        if (cache) {
            glVertex2f(cx,cy);
            glVertex2f(x2,y2);
        } else {
            fx = x2;
            fy = y2;
        }
        cache = 1;
        cx = x2;
        cy = y2;
    }
    glVertex2f(x2,y2);
    glVertex2f(fx,fy);

    glEnd();
}


void tick(void)
{
  //glutPostRedisplay();
}

void output(int x, int y, char *string)
{
  int len, i;

  glRasterPos2f(x, y);
  len = (int) strlen(string);
  for (i = 0; i < len; i++) {
    glutBitmapCharacter(font, string[i]);
  }
}

float calculate_radius(int x1,int y1) {
    int x_diff = m_x - x1;
       int y_diff = m_y - y1;
       if(x_diff<0) {
           x_diff *= -1;
       }
       if(y_diff<0) {
           y_diff *= -1;
       }
       float mag = x_diff*x_diff + y_diff*y_diff;
       float rad = sqrt(mag);
       return rad;
}

void display(void)
{
    // Show the X and Y coordinate location of the mouse
  glClear(GL_COLOR_BUFFER_BIT);
  char x_coord[10];
  sprintf(x_coord,"X:%d",m_x);
  char y_coord[10];
  sprintf(y_coord,"Y:%d",m_y);
  output(0, 24, x_coord);
  output(100, 24, y_coord);

  // Draw the circles at the existing positions
   for(int i=0; i<poi_size; i+=2) {
       int rad_index = (int)(i/2);
       float rad = rad_arr[rad_index];
       if (rad>1) {
           drawCircle(rad,poi_arr[i][0],poi_arr[i][1]);
       }
   }

   glutSwapBuffers();
}

void handleKeypress(unsigned char key, int x, int y) {
    switch (key) {
        case 27: //Escape key
            exit(0);
    }
}

void reshape(int w, int h)
{
  glViewport(0, 0, w, h);
  glMatrixMode(GL_PROJECTION);
  glLoadIdentity();
  gluOrtho2D(0, w, h, 0);
  glMatrixMode(GL_MODELVIEW);
}

// the mouse callback function:
void mouse_move(int x, int y)
{
    m_x = x;
    m_y = y;
    if (rubber_band_on) {
     float rd = calculate_radius(poi_arr[poi_size-1][0],poi_arr[poi_size-1][1]);
     rad_arr[poi_size/2] = rd;
    }
    display();
}

// the mouse callback function:
void mouse(int button, int state, int x, int y)
{
    m_x = x;
    m_y = y;

    switch (button) {
    case GLUT_RIGHT_BUTTON:
        if (state == GLUT_DOWN) {
        //    glutIdleFunc(spinDisplay);
        }
        if (state == GLUT_UP) {
            glutIdleFunc(NULL);
        }
        break;
    case GLUT_LEFT_BUTTON:
        if (state == GLUT_DOWN) {
            down_flag = 1;
        }
        if (state == GLUT_UP) {
            if(down_flag) {
                poi_arr[poi_size][0]=x;
                poi_arr[poi_size][1]=y;
                poi_size++;
                down_flag = 0;
                rubber_band_on = !rubber_band_on;
            }
            glutIdleFunc(NULL);
        }
        break;

    default:
        break;
    }

    if (rubber_band_on && poi_size>0) {
     float rd = calculate_radius(poi_arr[poi_size-1][0],poi_arr[poi_size-1][1]);
     rad_arr[poi_size/2] = rd;
    }
    display();
}

int main(int argc, char **argv)
{
  int i, msg_submenu, color_submenu;

  glutInit(&argc, argv);
  for (i = 1; i < argc; i++) {
    if (!strcmp(argv[i], "-mono")) {
      font = GLUT_BITMAP_9_BY_15;
    }
  }
  glutInitDisplayMode(GLUT_DOUBLE | GLUT_RGB);
  glutInitWindowSize(1000, 800);
  glutCreateWindow("OPENGL CIRCLE DRAWING");
  glClearColor(0.0, 0.0, 0.0, 1.0);

  glutDisplayFunc(display);
  glutReshapeFunc(reshape);
  glutIdleFunc(tick);
  glutKeyboardFunc(handleKeypress);
  glutMouseFunc(mouse);
  glutMotionFunc(mouse_move);
  glutPassiveMotionFunc(mouse_move);

  glutMainLoop();
  return 0;             /* ANSI C requires main to return int. */
}
